10克/小時，5％濃度@ 2 LPM氧氣進料，10 psi
125瓦，120 VAC（配220v變壓器）
風冷
工作壓力高達90 psi

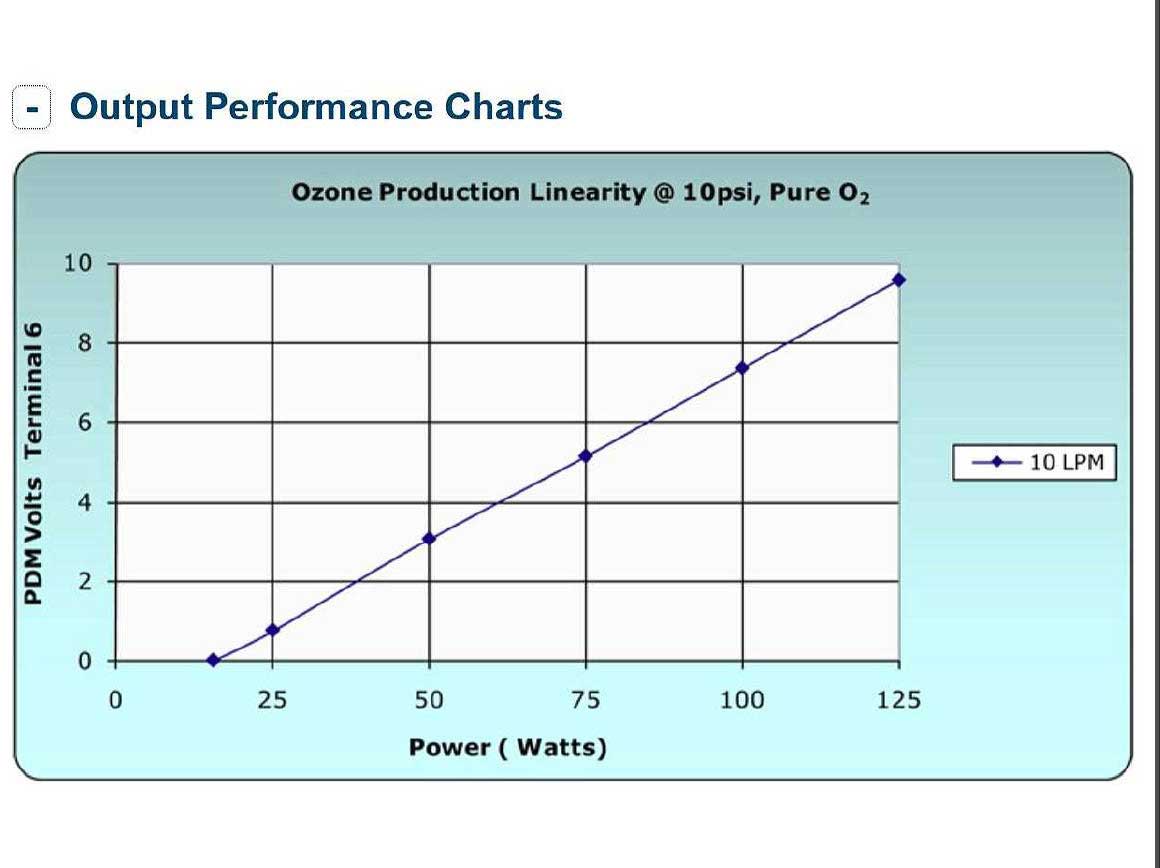

手動調節控制（臭氧產量可在1-100％之間調節，線性）
*通過4-20 mA或來自過程監控器或PLC的0-10 VDC信號進行遠程控制
*可選電壓表顯示臭氧生產水平
氧氣流量計，1-10 LPM（將進料速率從2 LPM提高到10 LPM，將臭氧產量提高到15克/小時）
壁掛式玻璃纖維外殼18“×16”×10“可選配支架，用于臭氧發生器的臺式使用
臭氧壓力表（針閥調節臭氧電池壓力，允許通過文丘里注射器進行真空操作）
臭氧供應電磁閥提供線路正向關閉（防止工藝水回流引起的細胞溢流）
氧氣和臭氧管線的1/4“NPT連接
接通延時定時器在啟動前啟動氧氣吹掃以干燥臭氧電池（消除由于內部濕氣引起電池電弧放電的可能性）
帶導向燈的主電源開關
臭氧待機和運行狀態指示燈

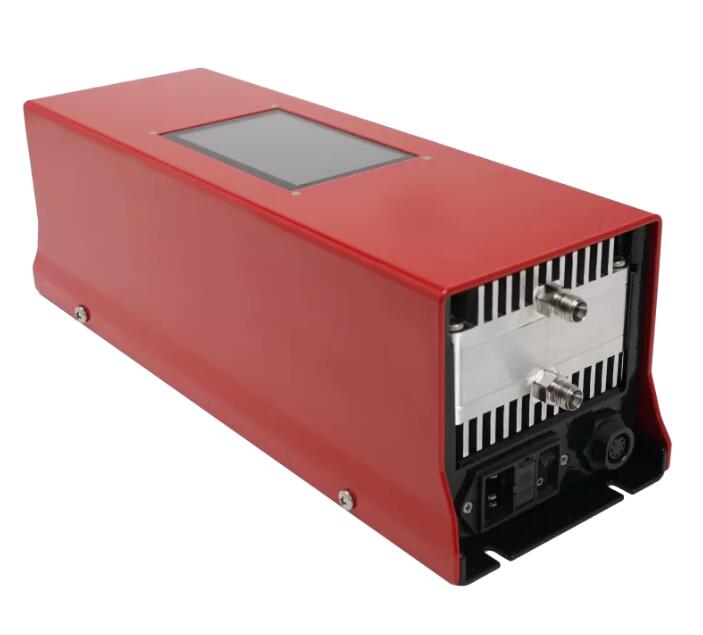

產品照片具有代表性（顯示可選的電壓表），單位可能因選項而異。
20克/小時，5％濃度，4 LPM氧氣，250瓦特，120伏特
英文說明HFL-10
-
10 grams/hour, 5% concentration @ 2 LPM oxygen feed, 10 psig
-
125 watts, 120 VAC
-
Air cooled
-
Operating pressure up to 90 psi
-
Manual turndown control (ozone production adjustable between 1-100%, linear)
-
equipped for remote control via 4-20 mA or 0-10 VDC signal from a process monitor or PLC
-
optional volt meter shows ozone production level
-
Oxygen flow meter, 1-10 LPM (increasing feed rate from 2 LPM to 10 LPM increases ozone production to 15 grams/hour)
-
Wall mount fiberglass enclosure 18" x 16" x 10" is available with optional stand for bench top use of ozone generator
-
Ozone pressure gauge (needle valve regulates ozone cell pressure and allows operation with vacuum by a venturi injector)
-
Ozone supply solenoid valve provides positive closure of ozone delivery line (prevents cell flooding by backflow of process water)
-
1/4” NPT connections for oxygen and ozone lines
-
On-delay timer initiates oxygen purge to dry ozone cell prior to startup (eliminates the possibility of cell arcing due to internal moisture)
-
Main power switch with pilot light
-
Ozone standby and running status pilot lights
-
Product photo is representative (shows the optional volt meter) and units may vary depending on options
HFL-20
20 grams/hour, 5% concentration, 4 LPM oxygen, 250 watts, 120 VAC
